To the River and Back

A seasonal calendar for a landscape, and a river a historic town had turned its back on.

Illustrated render of a riverside meadow in flower, a couple walking through it, a willow to one side and mountains beyond a blue river under a cloud-filled sky.

Magenta sits in the heart of Italy with a deep-rooted historic centre and a set of very contemporary problems: air pollution, inefficient waste management, and congestion produced by rapid urbanisation pressing against a town that was not built for it. The Ticino runs nearby, and the town has largely stopped using it.

The work is about getting back to the river. It builds a circulation system that makes the riverside reachable from the urban centre, and it treats the farmland in between as part of the design rather than as the gap between two destinations.

The centrepiece is a table we called The Chess — a seasonal landscape programme mapping farmers, ranchers, students, the general public, livestock, winter and spring crops, floral meadows, rice, grass and water across the whole year. It let us align every intervention with the rhythm the place already has, so the landscape stays occupied in February as well as July.

Two structures carry the design. A tower, because the site is flat and the tallest things in it are trees, elevates the view far enough to take in the river on one side and the fields on the other. A bridge crosses a riverbed that is dry for half the year, so it is designed to work wet and dry — less a crossing than an active piece of the terrain.

Before any of it, we made postcards on site: Gridded Memories, a set of drawings recording light, smell and temperature, because the first impression of a place is usually the most accurate one and the easiest to lose.

Location
Magenta, Italy
Year
2024
Studio
Built Environment & Landscape Design Studio · Semester 2
Professor
Darco Pandakovic
Format
Group project
My role
Concept design · Masterplan · Render · Strategy
Tools
Rhino · Illustrator · Photoshop · QGIS · Twinmotion · V-Ray

Academic work. My contribution is listed above; the rest of the studio group did the rest.

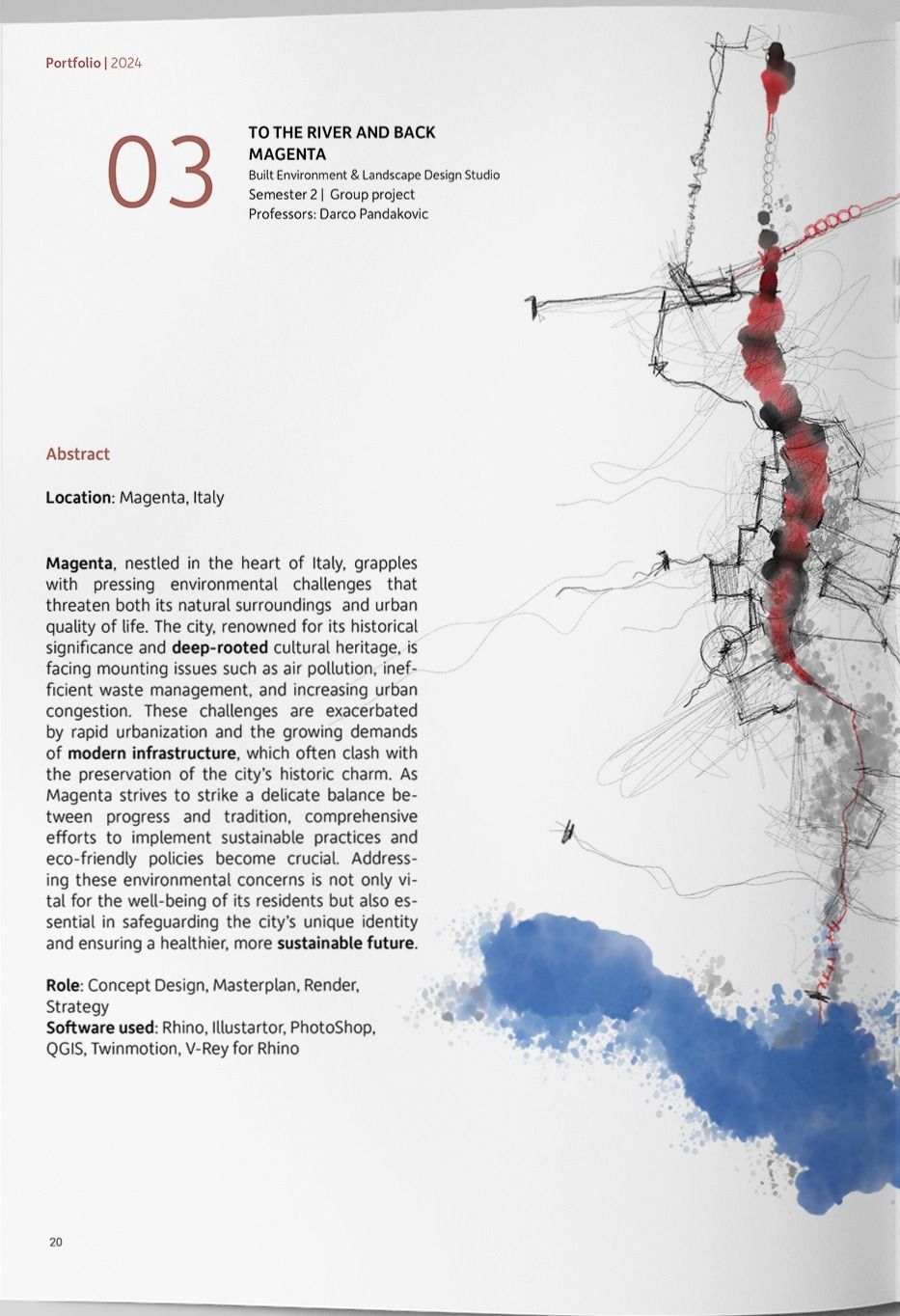

Concept drawing: black linework tracing the river corridor with a red spine and a blue wash where the water widens.
Concept — the river as a spine

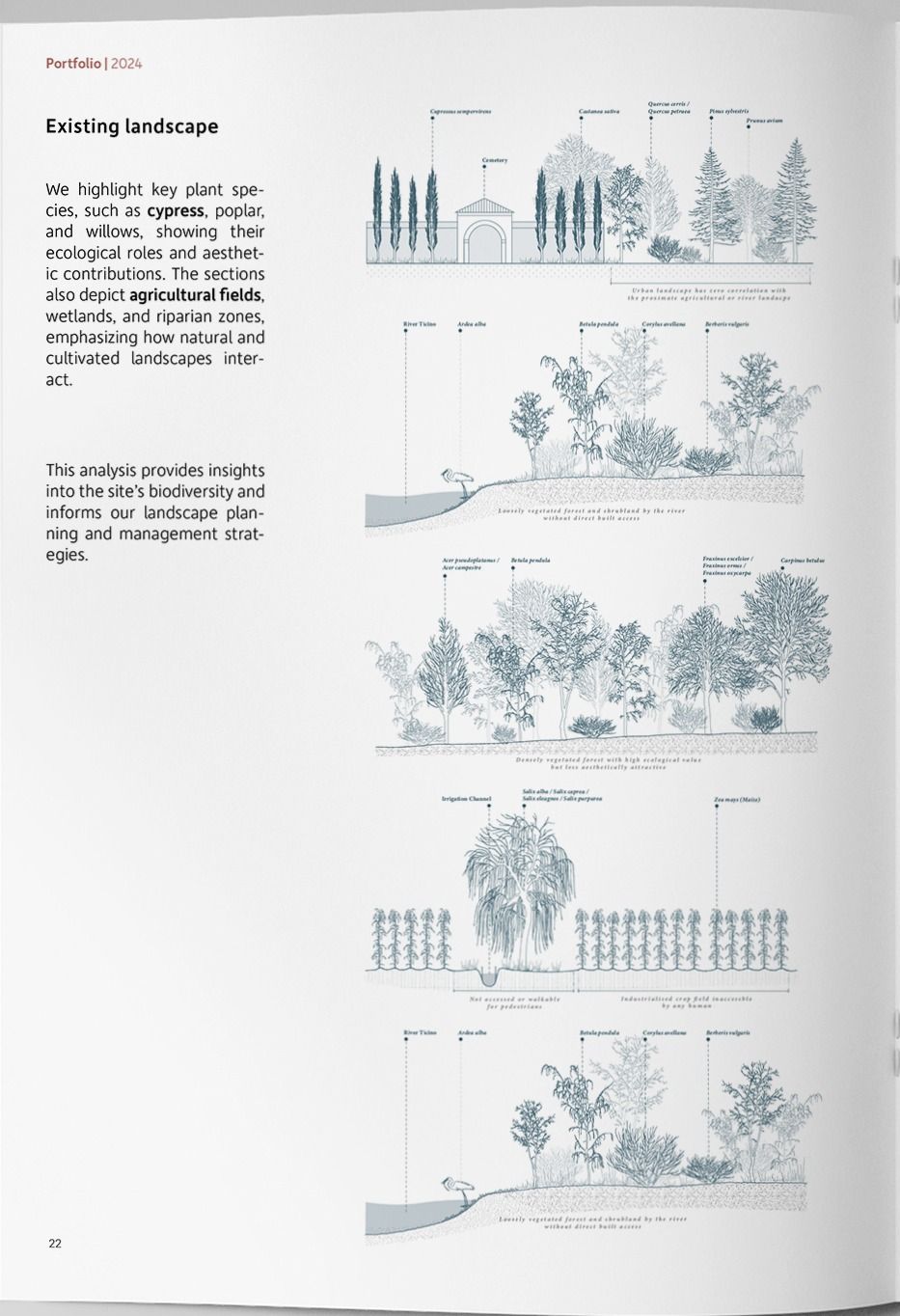

Five stacked section drawings of the existing landscape, naming cypress, poplar, willow and the crop fields between them.
Existing landscape — the species already there

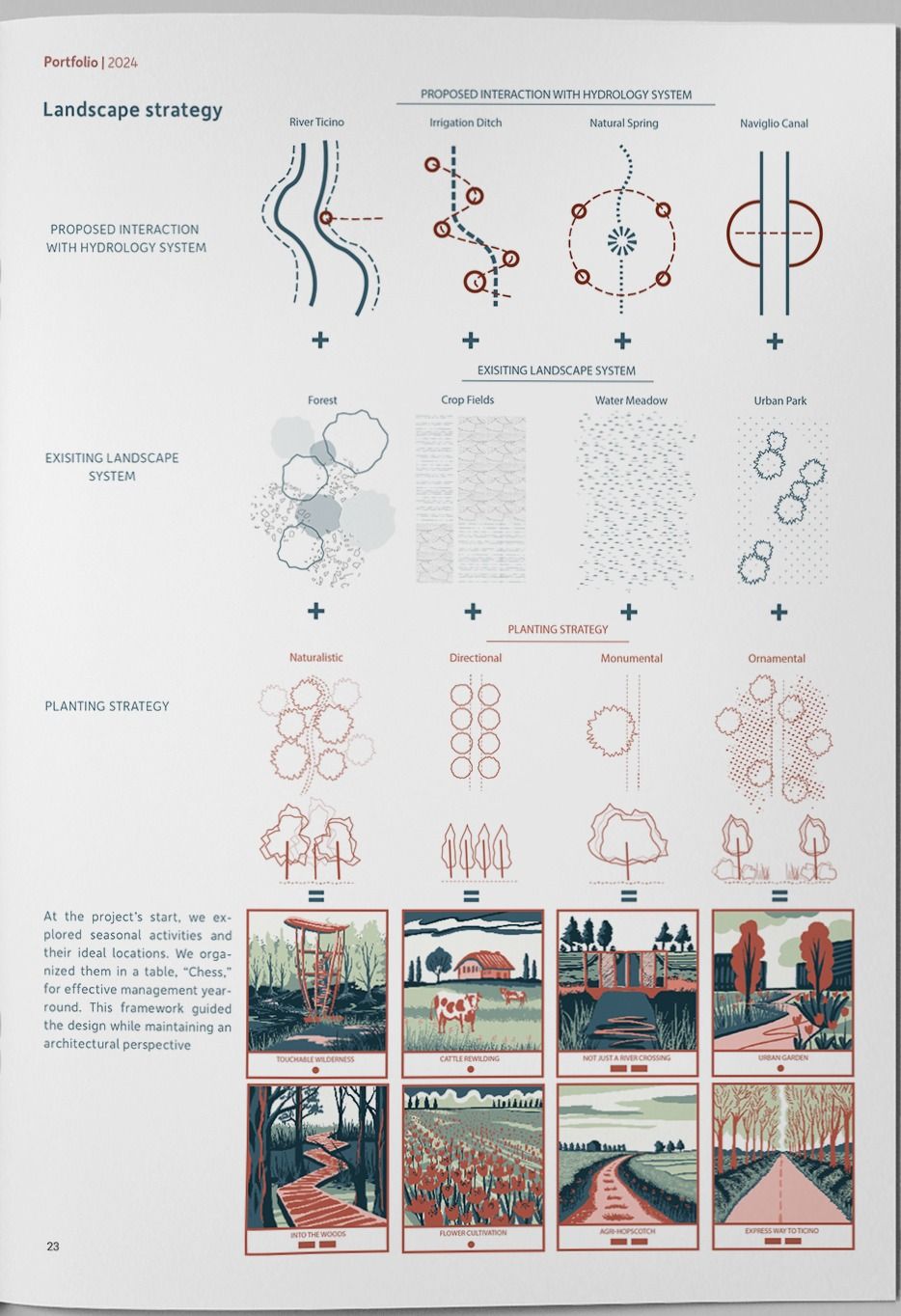

Matrix diagram combining hydrology, existing landscape systems and planting strategies, above eight illustrated activity cards.
Landscape strategy

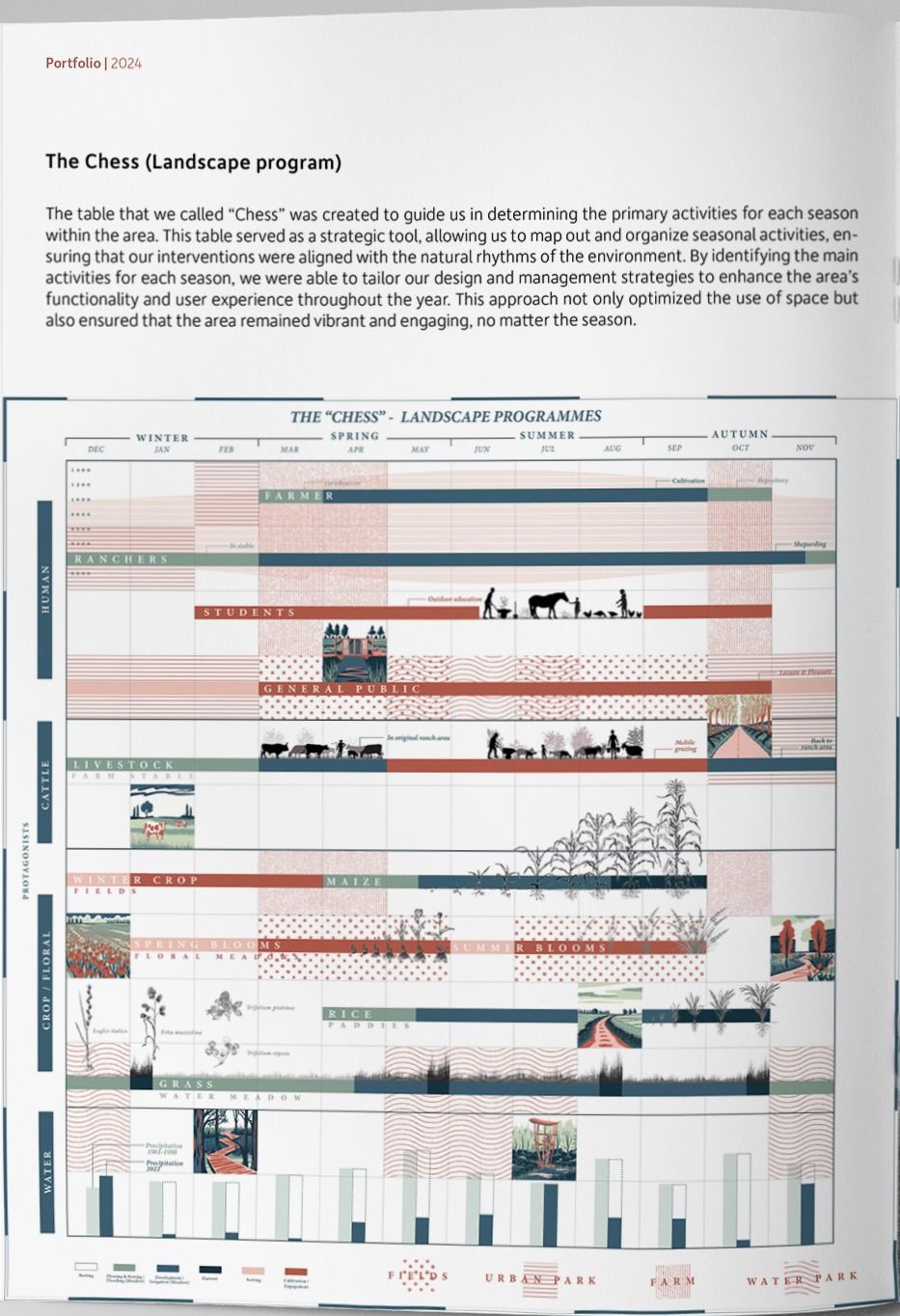

Large seasonal programme table charting farmers, ranchers, students, public, livestock, crops, blooms and water month by month across the year.
The Chess — the landscape programme

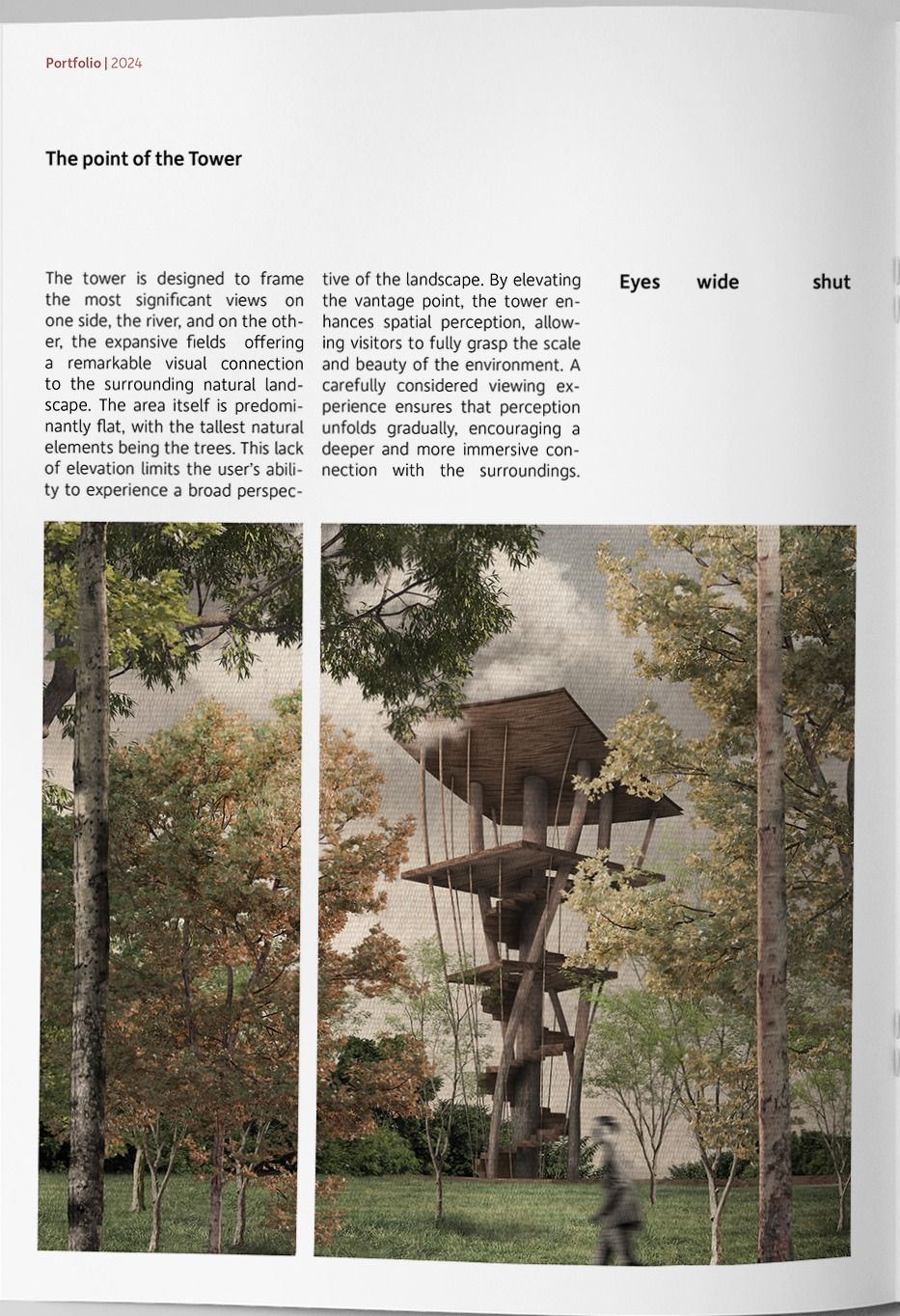

Two renders of a timber viewing tower among trees, its stair spiralling up to stacked platforms.
The tower

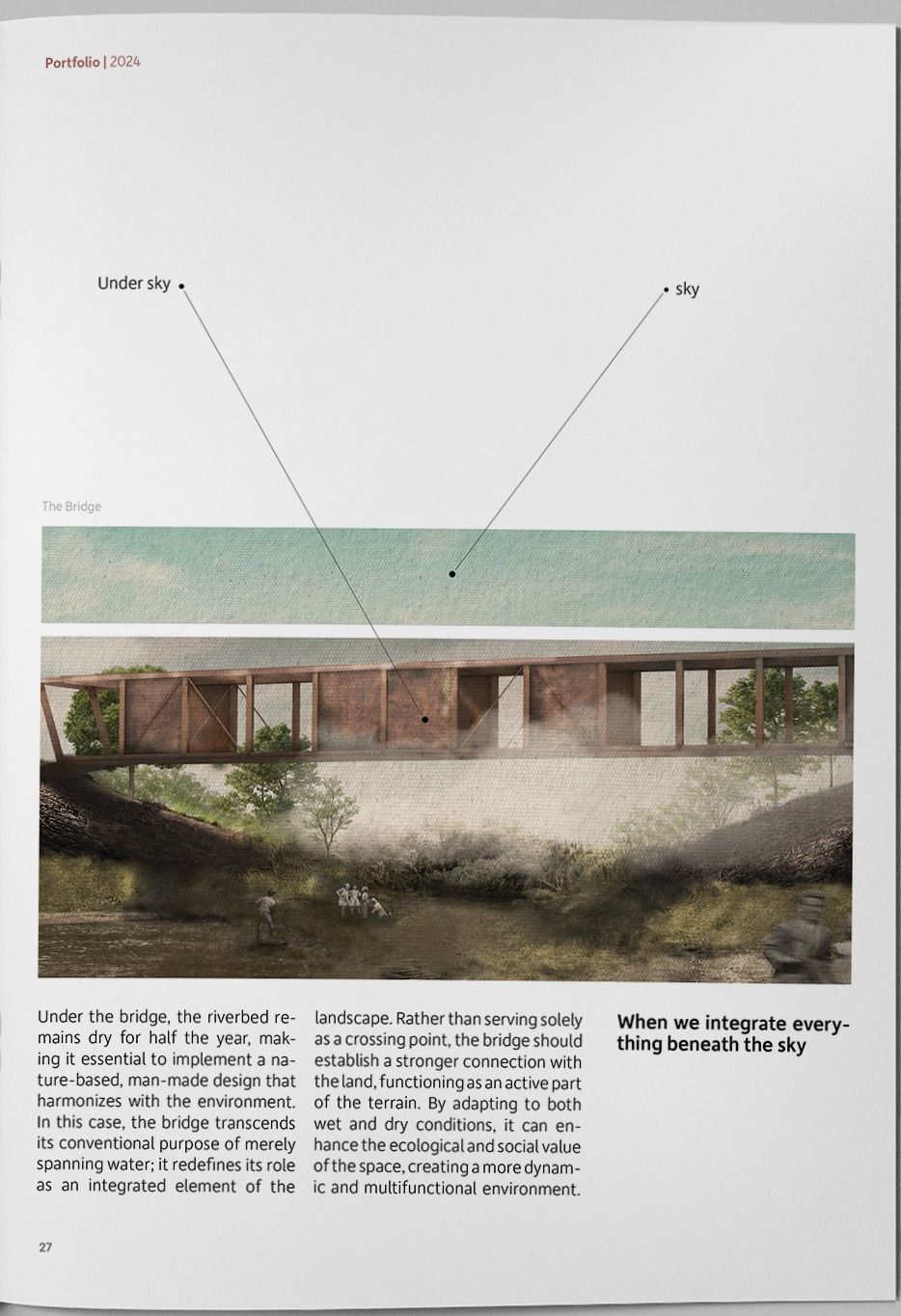

Long elevation of a timber and steel bridge spanning a dry riverbed, with figures wading in the shallow water below.
The bridge — built for a riverbed dry half the year

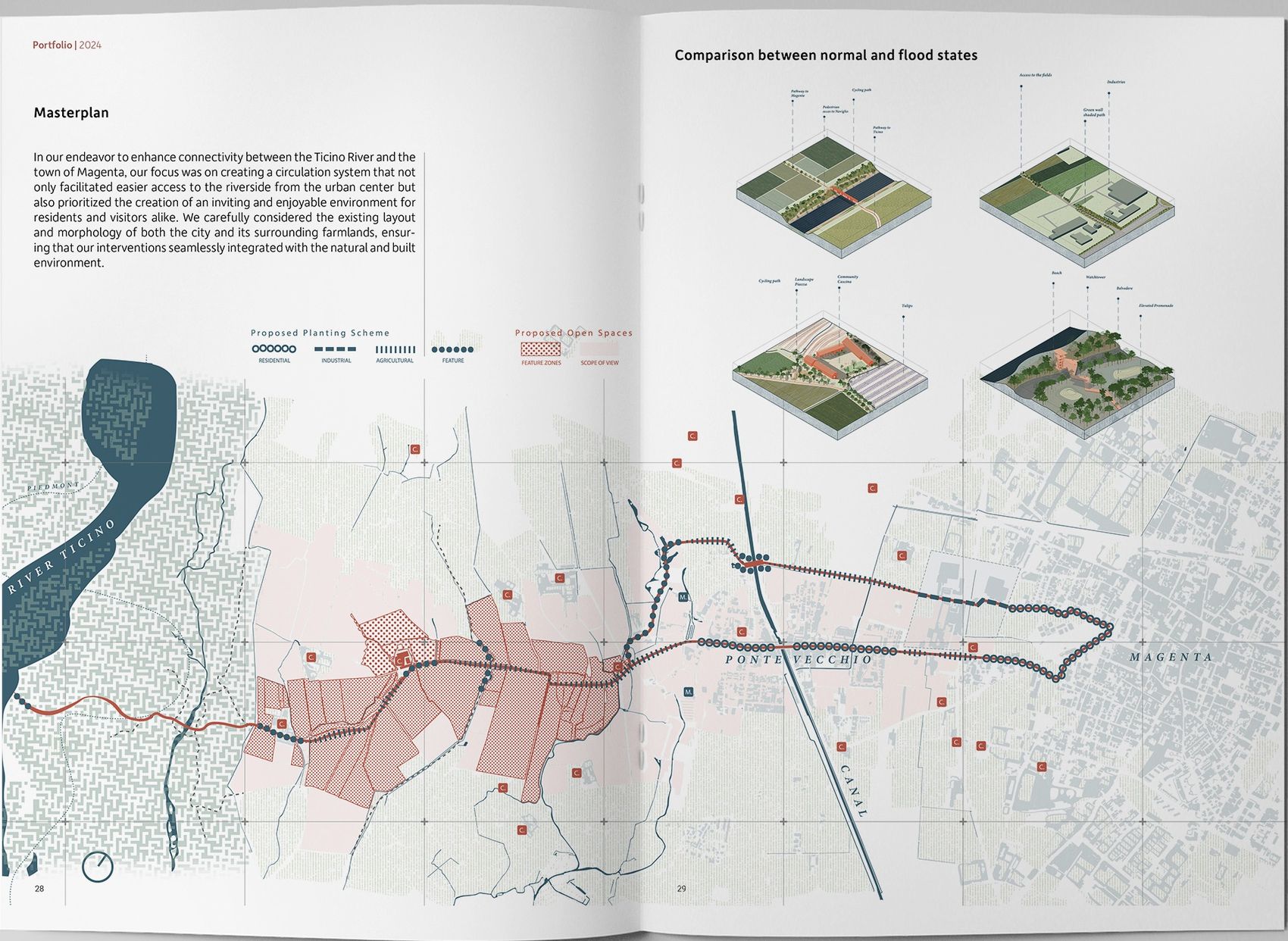

Masterplan of Magenta and the Ticino, the river in deep blue, the intervention zones in red hatch and the route picked out in dotted line.
Masterplan

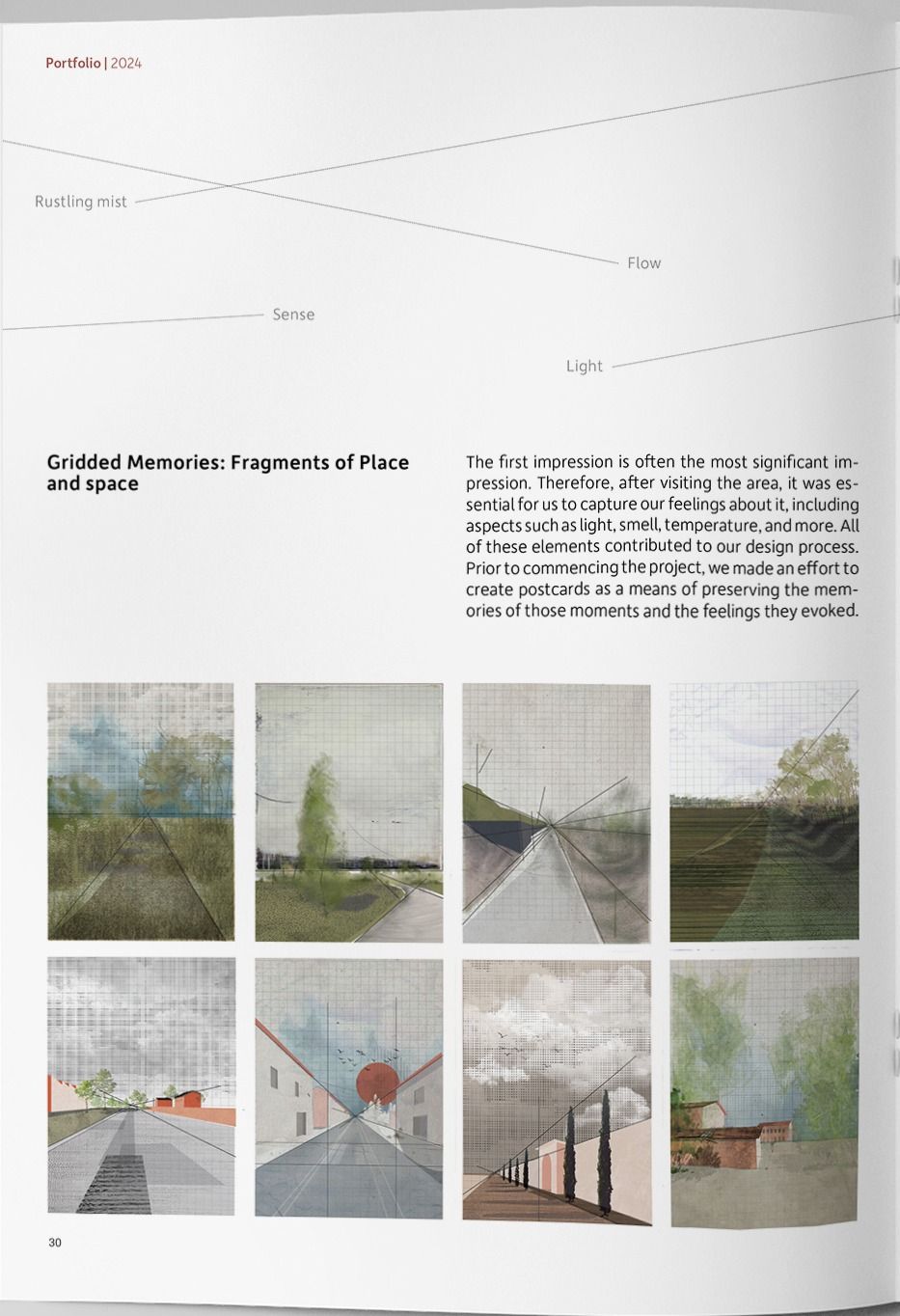

Eight gridded postcard drawings of roads, tree lines, fields and buildings recording first impressions of the site.
Gridded Memories — fragments of place and space
